BAY & BOW FRAME OPTIONS
Exterior Finishing Systems
Prefabricated Hip Roof System...
The custom-sized, hip roof package helps insulate the top exterior of the unit and gives it a finished appearance.
- Standard pitch is "7/12" with a 3" overhang (custom pitch is also available)
- Base, back wall, and sheathing are constructed with 7/16" OSB (Oriented Strand Board) with 1x2 perimeter blocking and 2x2 rafters
Standing Seam Roof Cladding - Available as an add-on option to the custom hip roof package.
- .40 Kynar Painted Aluminum and 20 oz. Real Copper
- 31 Colors to choose from
- Pre-bent and fit panels make installation a breeze
NOTE: THE STANDING SEAM OPTION HAS BEEN DISCONTINUED AND IS CURRENTLY UNAVAILABLE
Prefabricated Insulated Seat Board...
The custom-sized, insulated seat board package is perfect for finishing and insulating the bottom exterior of the unit.
- Frame widths up to 121 1/2" (frames over 121 1/2" will be supplied with 2 pieces of vinyl laminate with vinyl "H" channel as a center divider)
- 10 mill vinyl laminate applied over 1/2" exterior fir plywood and 1" foam insulation
- Vinyl extruded cap for coverage of edge to wall and nails for assembly are supplied
Decorative Additions
Interior Low-Voltage Light Kit...
Recessed lighting helps to make the bay and bow windows even more beautiful. Light kits come fully installed.
- Light kit includes (1) 12-volt driver and (2), (3), (4), or (5) 12-volt UL® approved lights available in Black, Brass, Nickel or White finish
- Plug in cord with roll switch allows for hassle-free installation (hard wiring option is not available)
- LED soft white lamps offer energy efficiency & long life
Laminated Head/Seat
Available in hundreds of colors, the laminated seat and/or head eliminates the need for paint or stain.
- Provides a smooth, hard surface that is unaffected by condensation - perfect for displaying plants! (Stock colors now available!)
Interior Casing
Interior Casing
Interior Casing
Available in oak or pine, the 3 1/2" casing finishes the frame's interior perimeter.
Edge Banding
Interior Casing
Interior Casing
Edge banding easily eliminates the exposed plywood edge on head and seat boards.
Knee Brackets
Turnbuckle Support Kit
Turnbuckle Support Kit

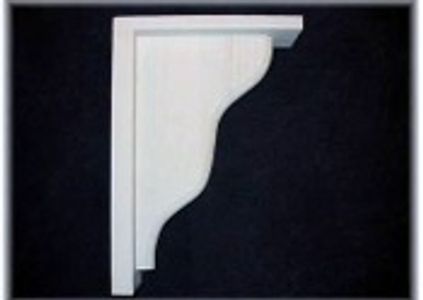

Our knee brackets not only provide added support to the bottom of the units, they also give the frames a decorative flair.
- Cut from 1" solid white PVC material (no painting required)
- Five sizes available: small, medium, large, extra large, and 90 degree
Turnbuckle Support Kit
Turnbuckle Support Kit
Turnbuckle Support Kit

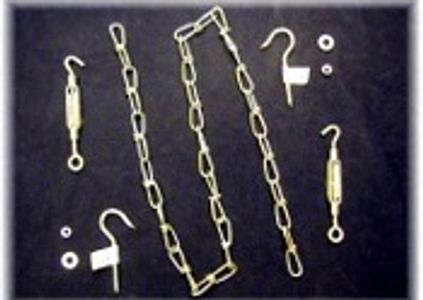

The turnbuckle support kit helps to relieve strain on the window unit by tying into the soffit of the home or building.
- Each kit includes: (1) 4' chain, (2) turnbuckles, (2) wall hooks, (2) washers, and (2) nuts
