Bay & Bow Window FRAME FEATURES
WINDOW MANUFACTURERS... OUTSOURCE YOUR BAY & BOW FRAMES
Built exclusively for replacement window manufacturers, our bay and bow frames are custom sized to your specifications and can adapt to almost any type of replacement window. Our frames are available in bay, box-bay, and 3, 4, 5, or 6 lite bow configurations. Each unit can be made with a desired projection, therefore making each one completely unique.
Designed to be both beautiful and functional, our bay and bow frames combined with your replacement windows are the perfect addition to any home.

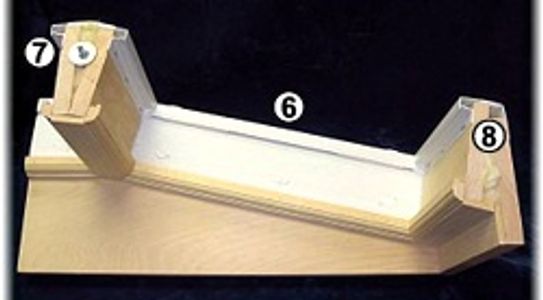

Standard Frame Features
- 1" hardwood cabinet-grade veneer head and seat board available in select white birch, red oak, and maple (maple only used in lieu of birch on widths over 121-1/2" due to availability)
- 3/4" #1 Eastern White Pine struts allow for unlimited angles from 0 to 55 degrees
- 3/4" #1 Eastern White Pine end jambs (has secondary cover to hide unsightly installation nails and screws)
- Two interior finishes - all wood or vinyl mullions, end fillers, and stops
- Sill has a unique weep system
- Maintenance-free vinyl clad exterior - available in white or beige (custom painting now available)
- 1/4" all-threaded steel rods between struts tie head and seat boards together for added strength
- Low pressure polyurethane foam sealant between struts
Weep Sill System
Our unique weep sill system is designed to drain all condensation or water infiltration to the exterior of the unit.
Eliminates headaches and call backs by protecting the finished interior of the unit from water damage - just another reason why our frames are "worry free."
